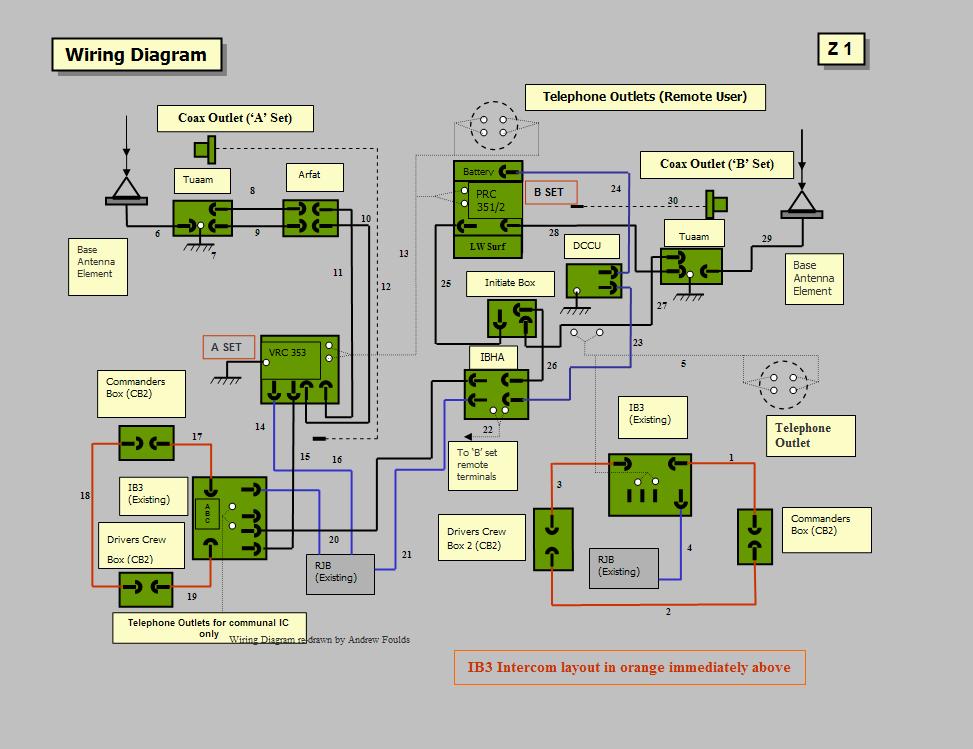

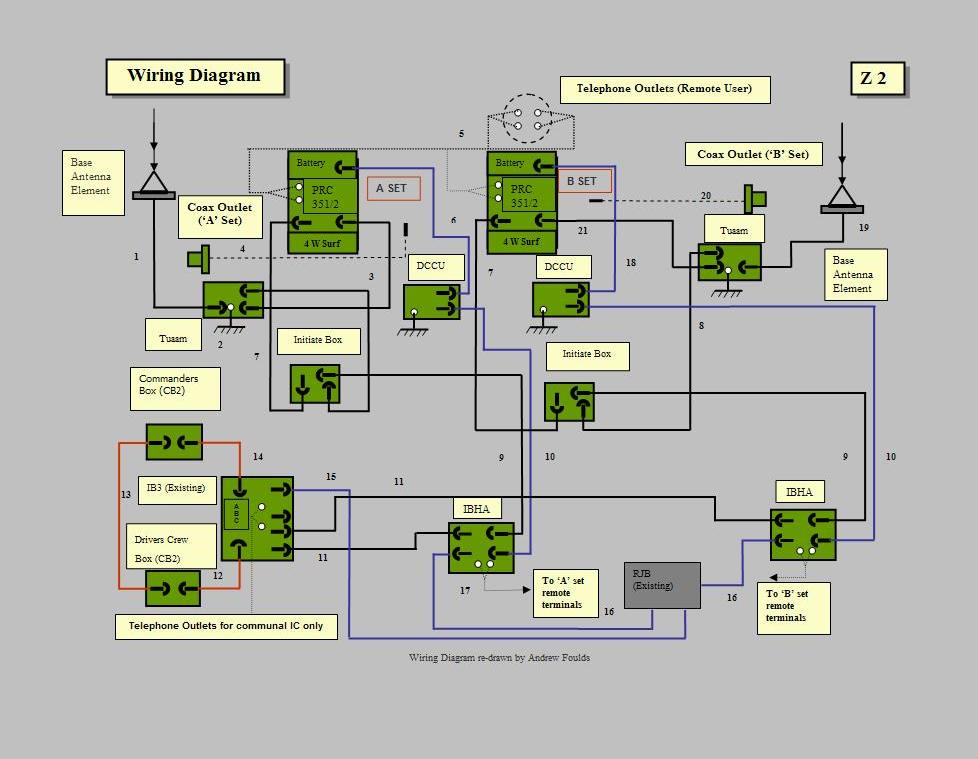

Clansman Radio diagram VRC 353 & PRC 351/2
If you click on IB3 or any of the named items in the diagrams below a new window will open with a picture of the radio or the box
Basic Clansman Radio Intercom
With the Clansman radio/intercom boxes no radio is required for the intercom unlike the previous system Larkspur which does require a radio for the intercom too work.
After a conversation with another Ferret owner I thought it might be worth adding a few pictures of what a basic Clansman intercom looks like, along with the type of connections required.

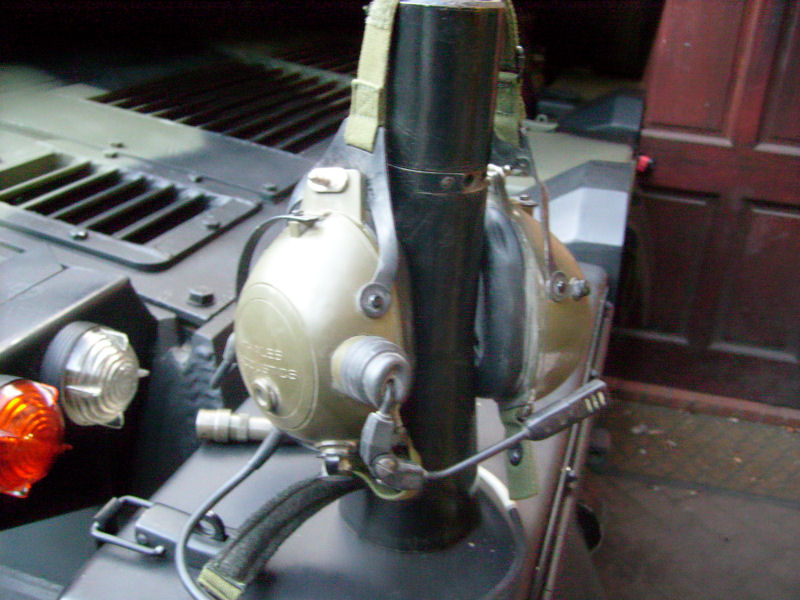

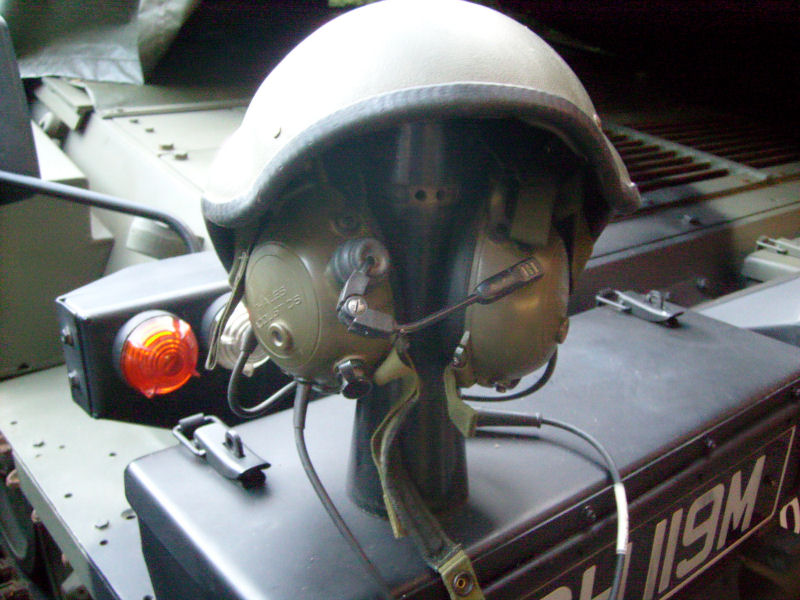

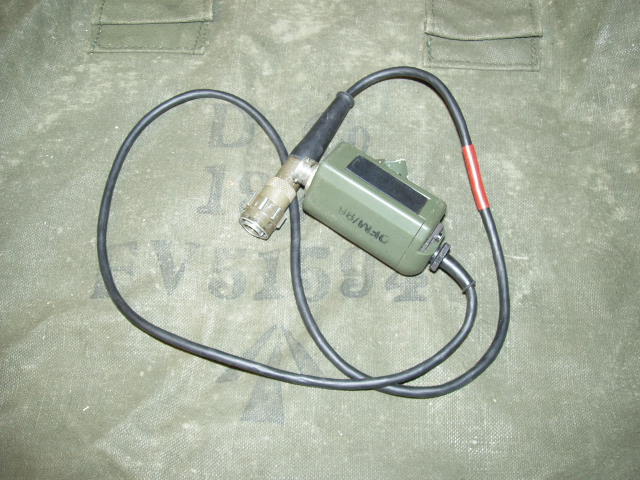

The PTT's (Pressels) should be green if used with gold boxes but they will work with either configuration. The ANR headsets only work correctly if used with the green ANR PTTs.
1. IB3 Box.
2. Drivers Box.
3. Power Cable 2 pin female with ring connectors.
4. 12 pin IB3 – Drivers Box connecting cable.
5. Ptt (Press to talk) x 2.
6. Headsets x 2 (Prc351 radio type easy to clean).

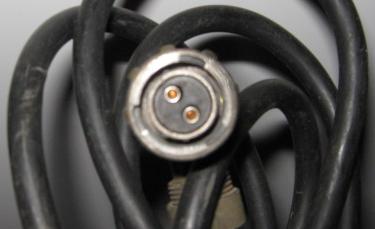

| No. 3 Power Cable 2 pin female. | No. 4 12 pin IB3 – Drivers Box connecting cable. |
 |
 |
| IB3 connections | |

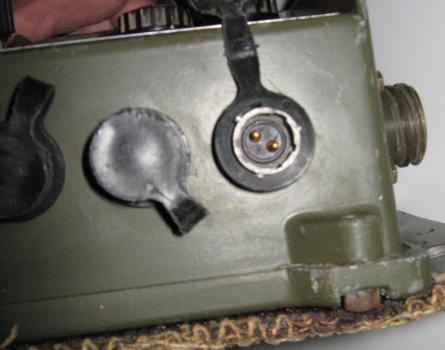

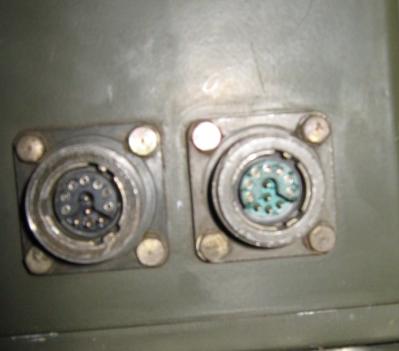

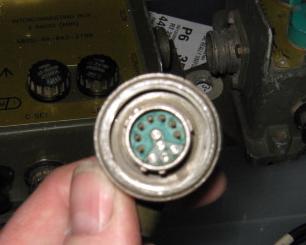

| Male power connection on the IB3 Box (No. 3) | 12 pin connections on the IB3 Box (No. 4) |
 |
 |
Many thanks to the owners who have sent in their pictures for this page
|
Clansman Boxes Basic intercom |
|||

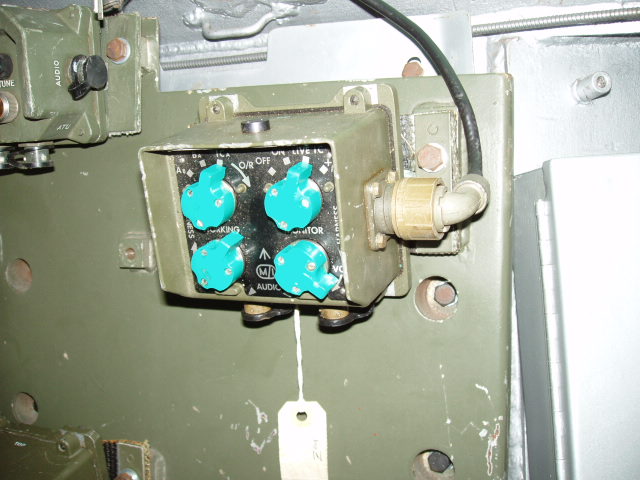

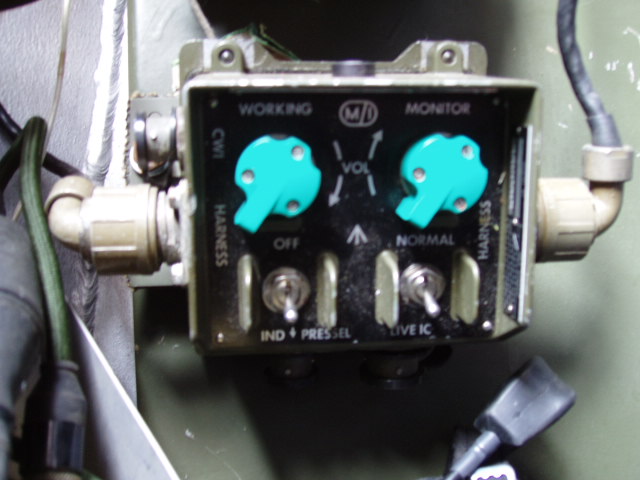

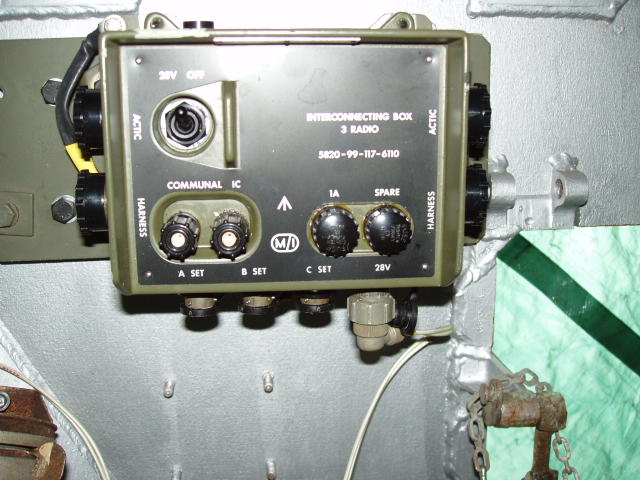

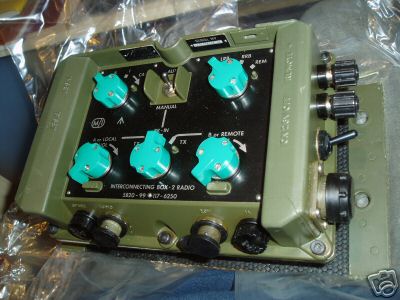

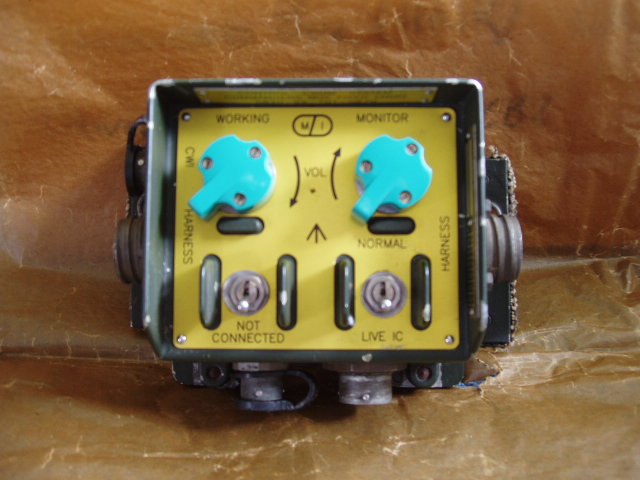

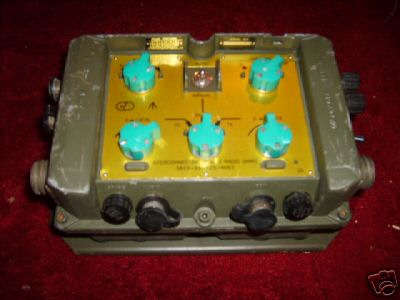

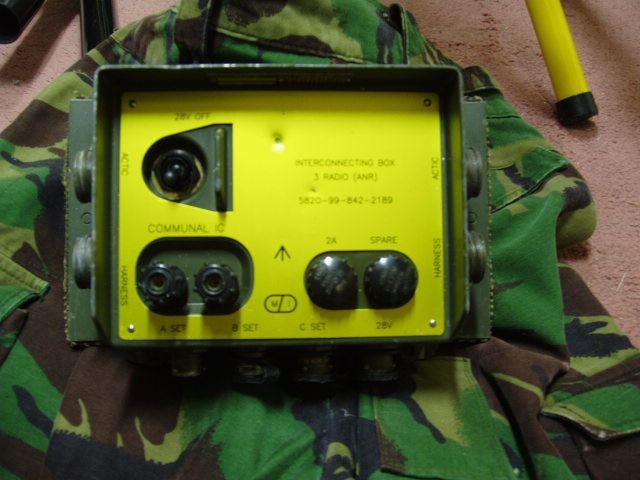

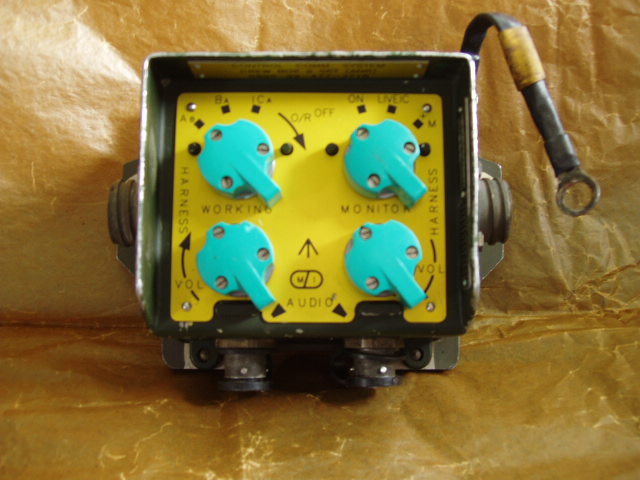

| Interconnecting Box IB3 | Drivers Crew Box CB2 | Commanders Crew Box CB2 | Interconnecting Box IB2 |
 |
 |
 |
 |
| ANR Version | ANR Version | ANR Version | ANR Version |
 |
 |
 |
 |

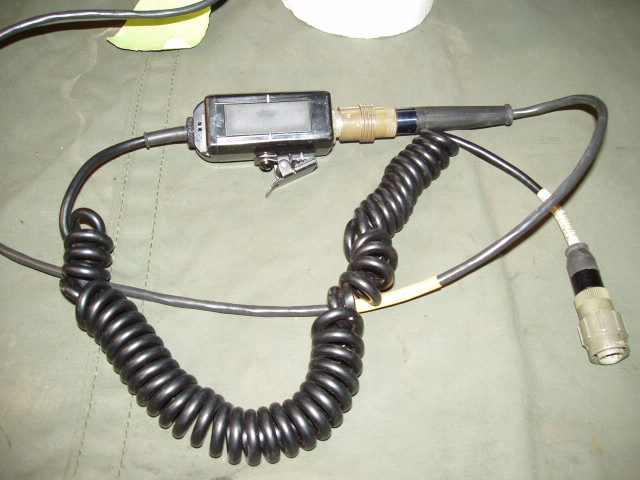

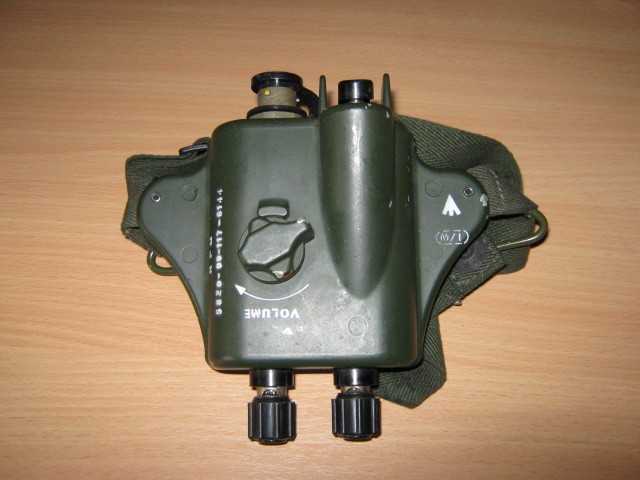

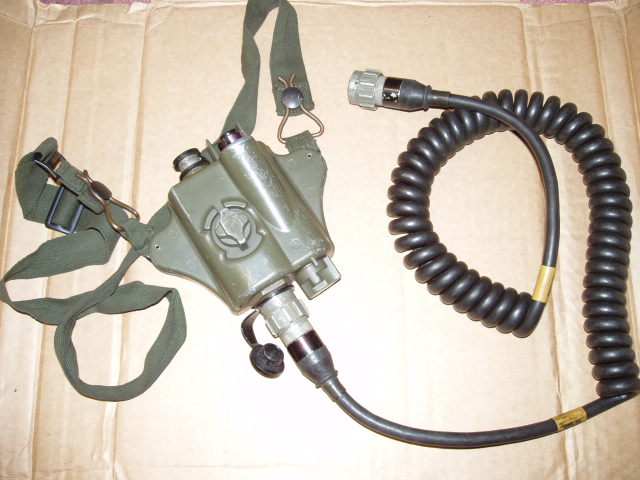

| Pressell Black boxes | Pressell Gold boxes ANR | CPU with Ten pin plug ANR ver | RPU for use with D10 wire |
 |
 |
 |
 |

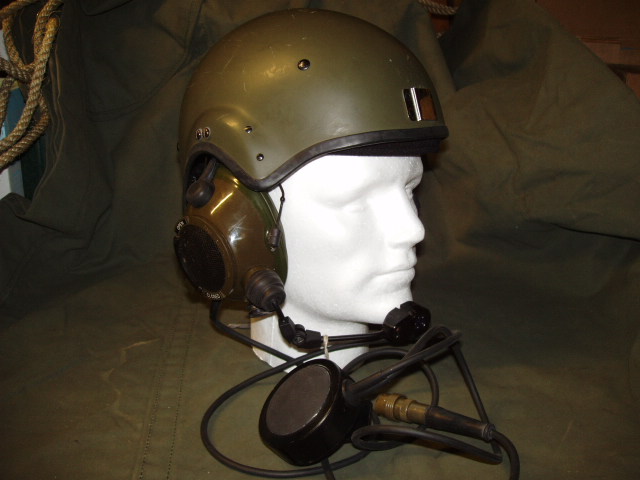

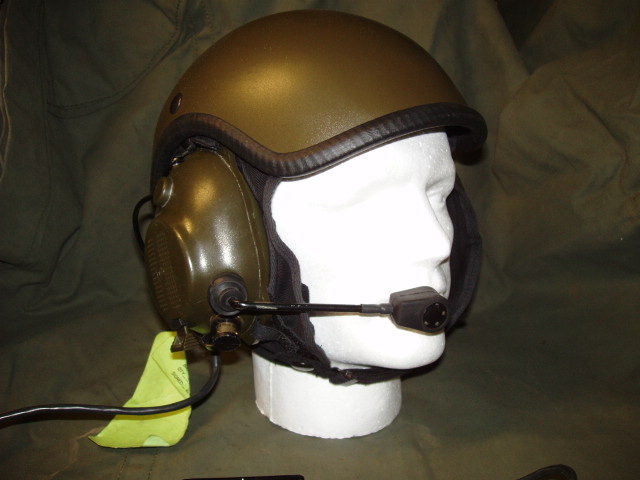

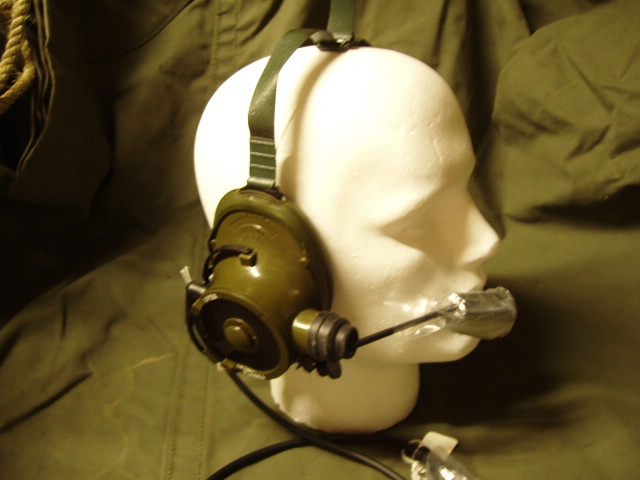

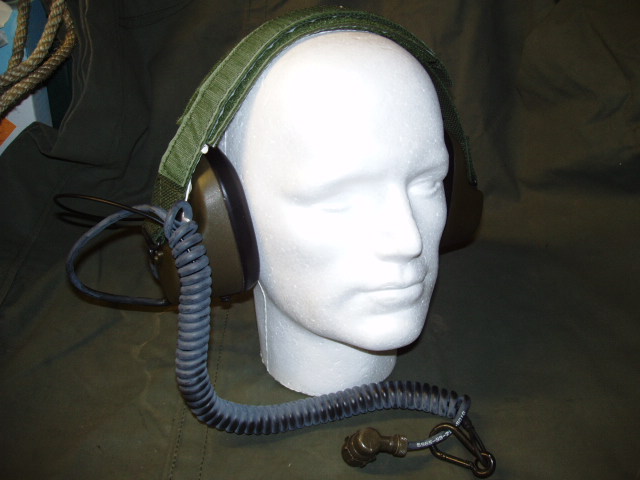

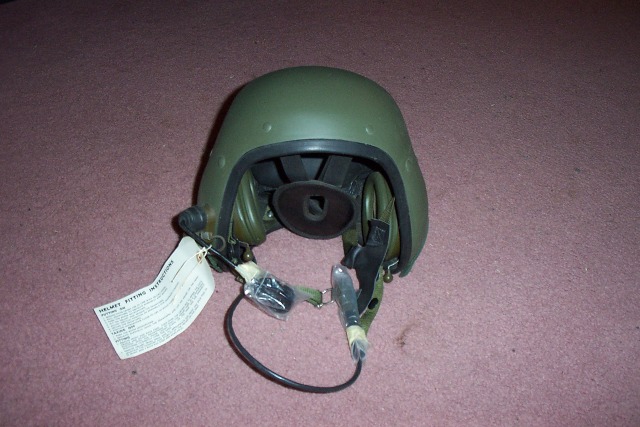

| Headset Black boxes | Headset / Helmet Black boxes | Headset / Helmet Black boxes | Headset / Helmet Black boxes |
 |
 |
 |
 |
| Headsets Gold boxes | Headsets Gold boxes | Headsets Gold boxes | PRC351 cable |
 |
 |
 |
 |

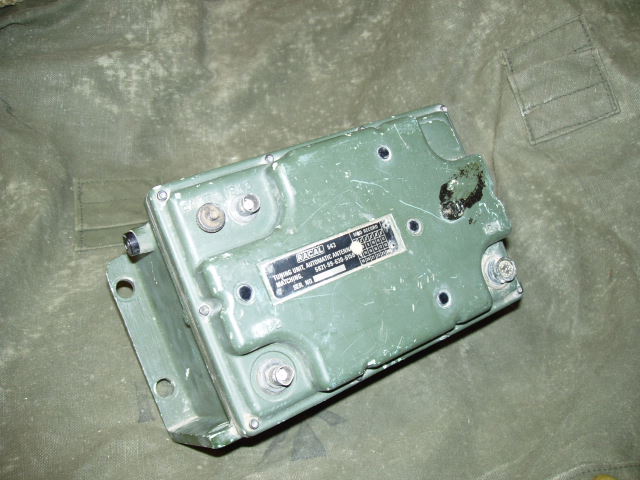

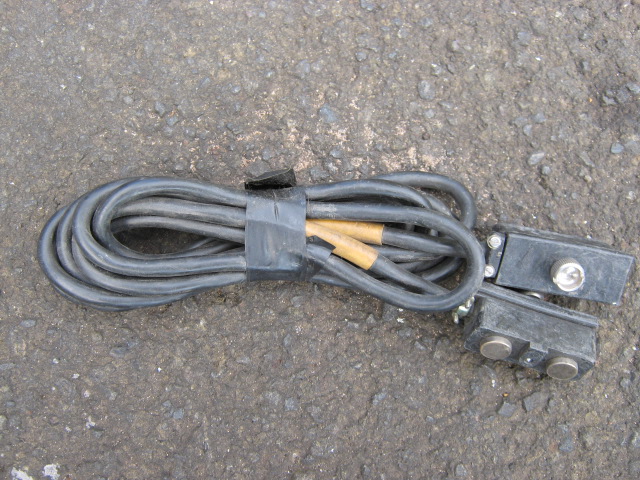

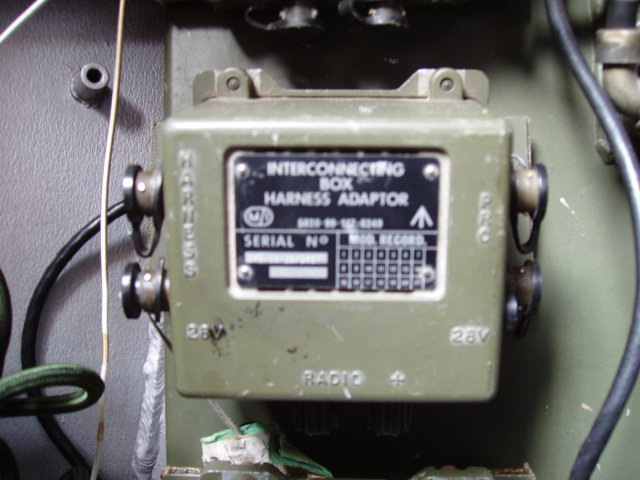

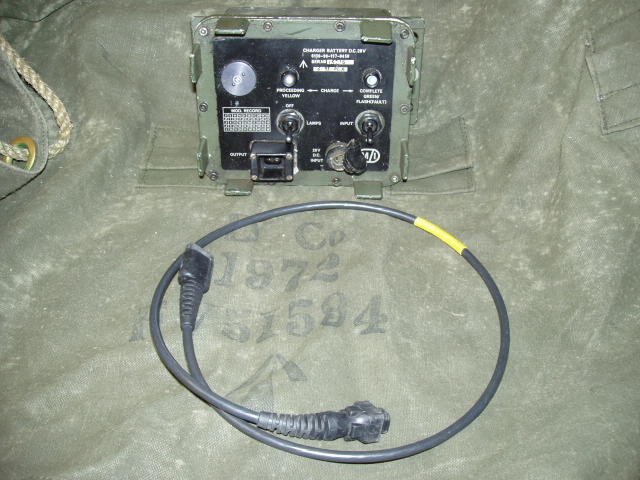

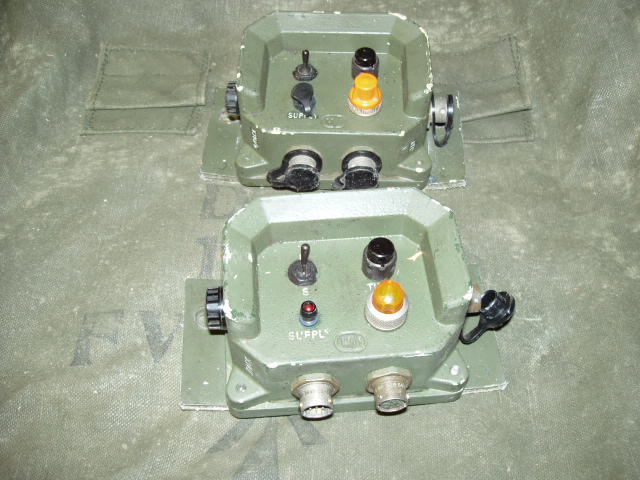

| DCCU 24 volt and cable | Initiate Box | IBHA | Tuaam |
 |
 |
 |
 |

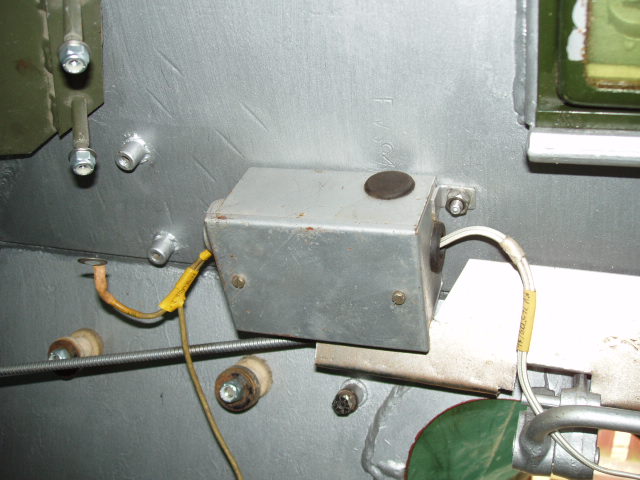

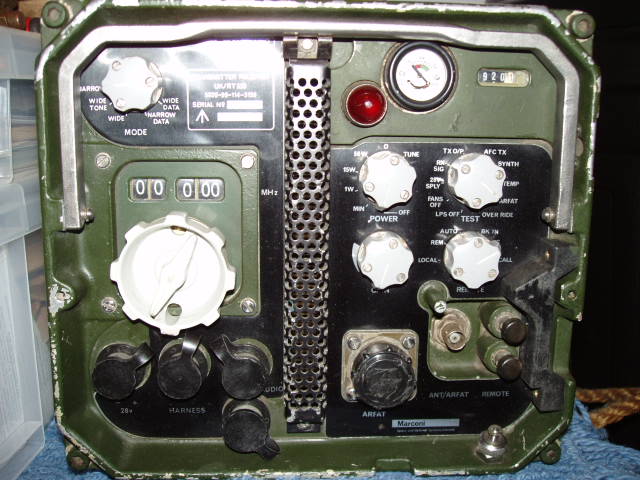

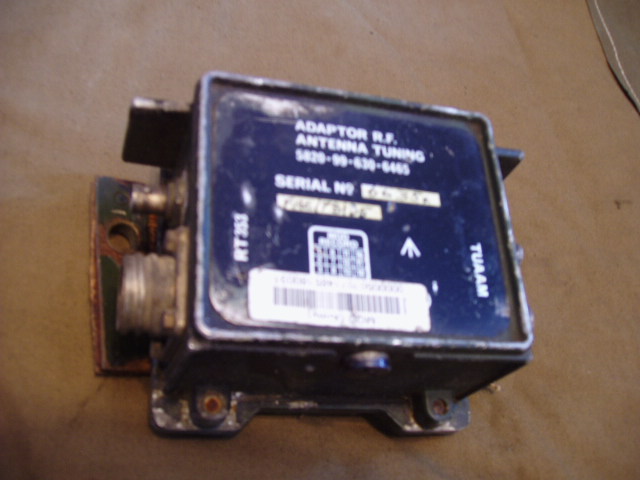

| PRC351/2 | Radio VRC353 | ARFAT | Radio Junction Box RJB |
 |
 |
 |
 |

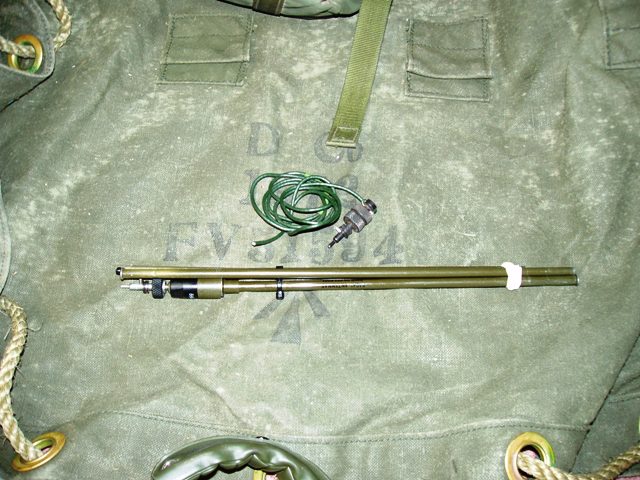

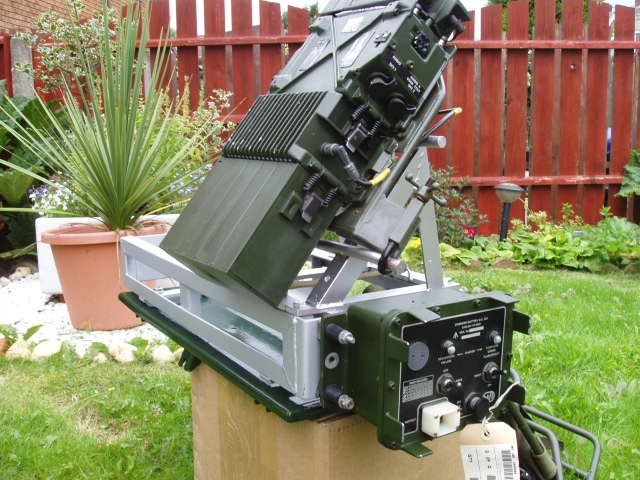

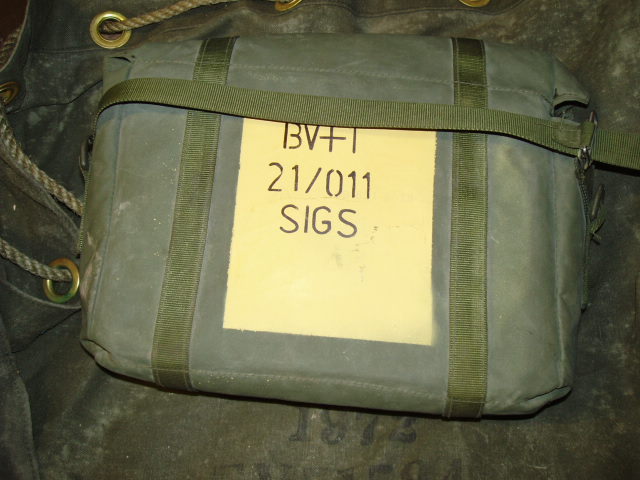

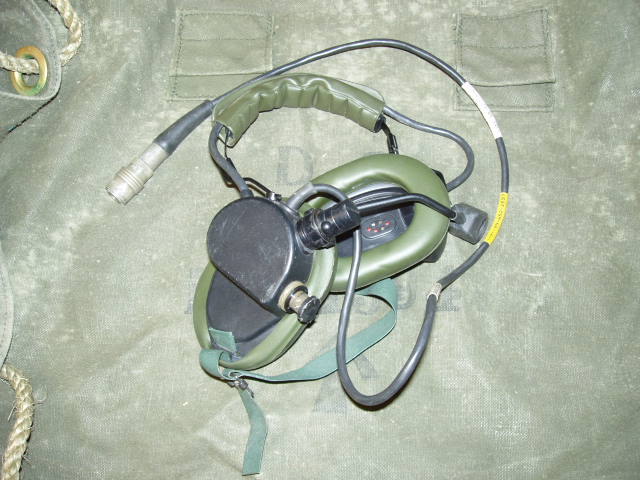

| Bag for the PRC351/2 | Headset for PRC351/2 | Aerials for PRC351/2 | PRC351/2 with 24 volt DCCU |
 |
 |
 |
 |

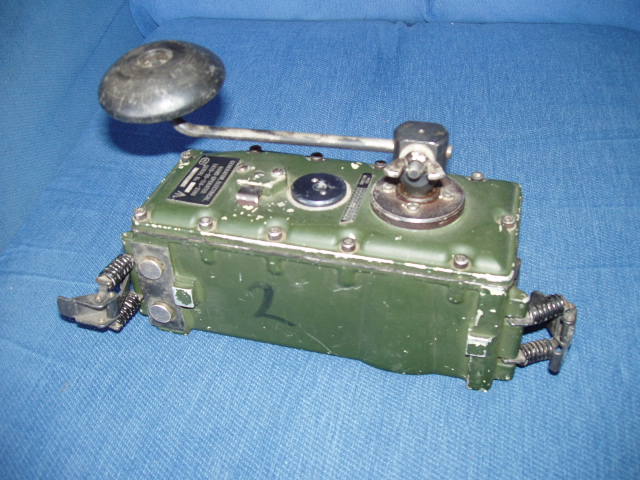

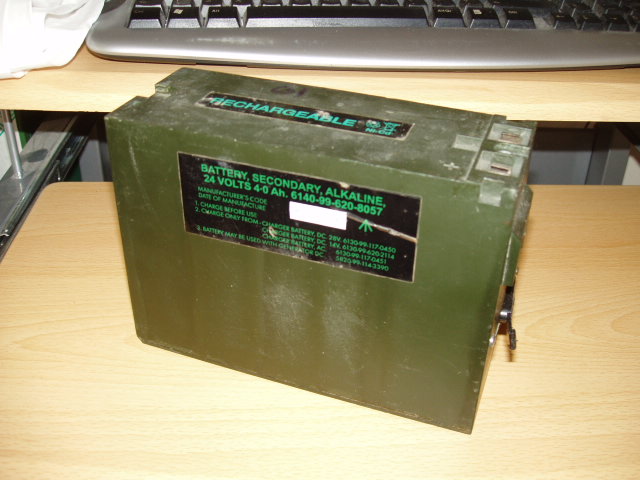

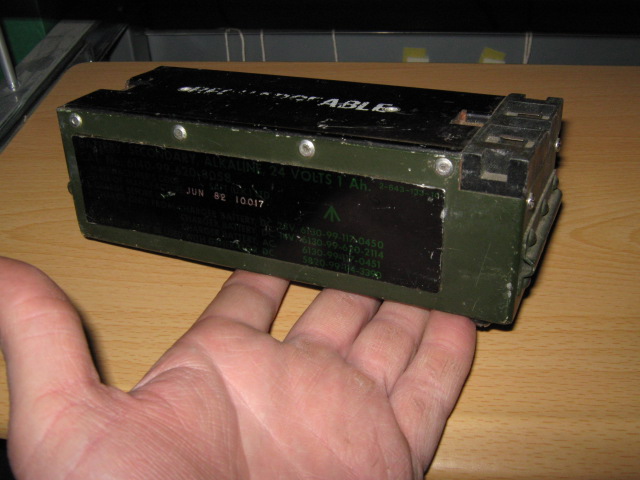

| PRC351/2 Handcharger | Whip Aerial for PRC351/2 | Battery for PRC351/2 | Battery for PRC351/2 |
 |
 |
 |
|

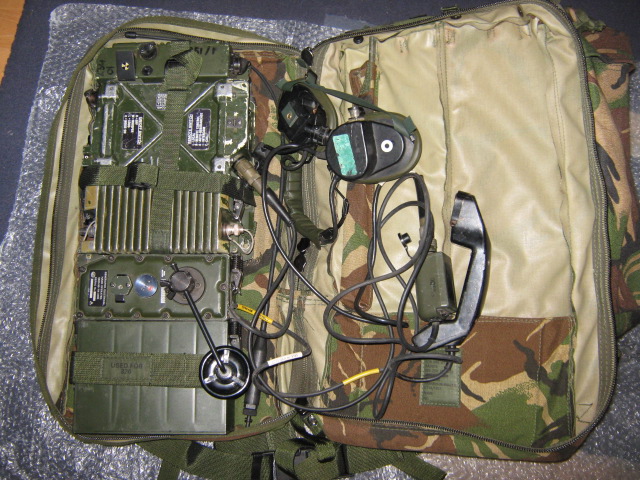

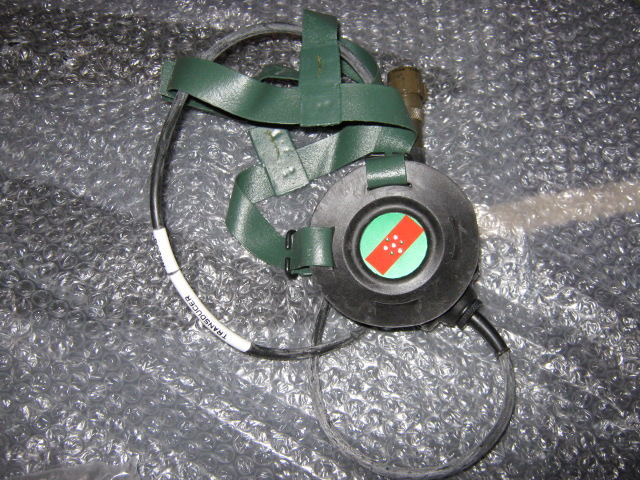

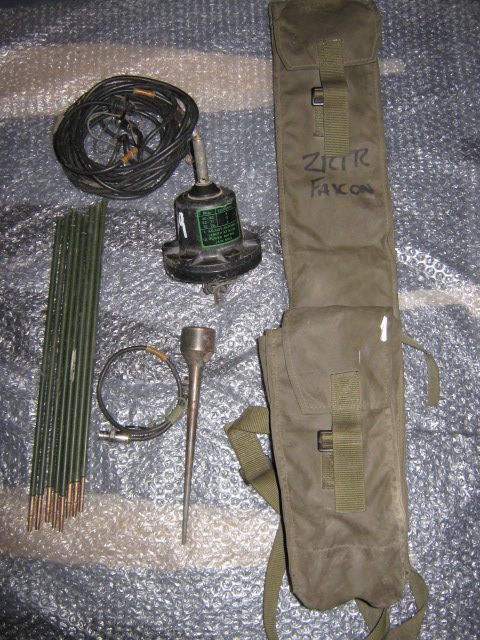

| Throat mic Headset | Transducer Headset no use in Ferret | Ground Spike Antenna | Radio Bergen (rucksack) |
 |
 |
 |
 |
| Clansman mounting plates | |||

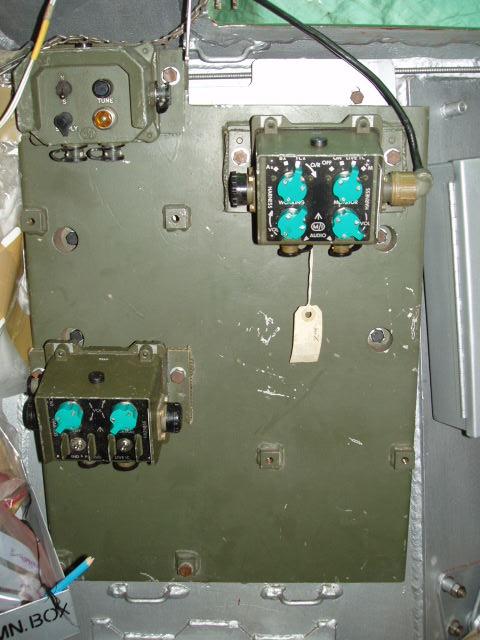

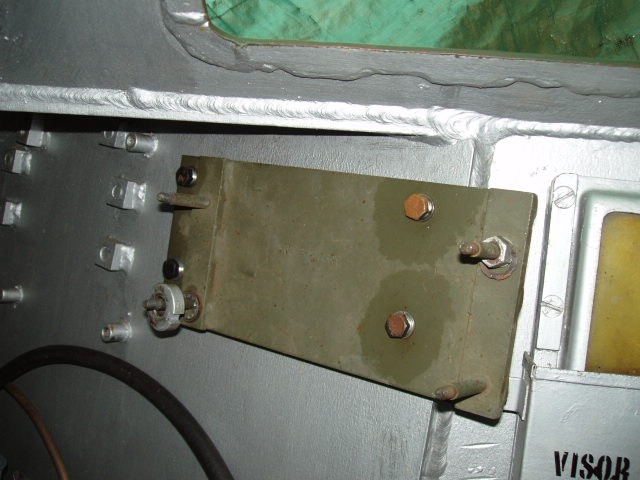

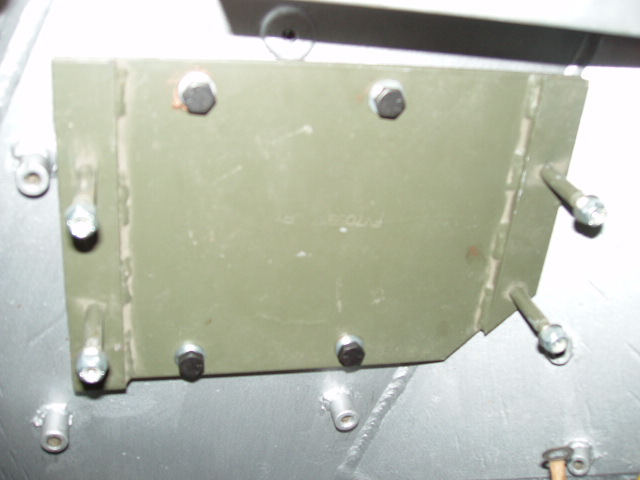

| Tuaam mounting plate | Universal mounting plate | Tuaam mounting plate | IB2 / IB3 mounting plate |
 |
 |
 |
|
| Links below not working yet | |||
| Click here for a pdf drawing of the above | Click here for a pdf drawing of the above | Click here for a pdf drawing of the above | Click here for a pdf drawing of the above |
| Clansman Radio mounting frames | |||

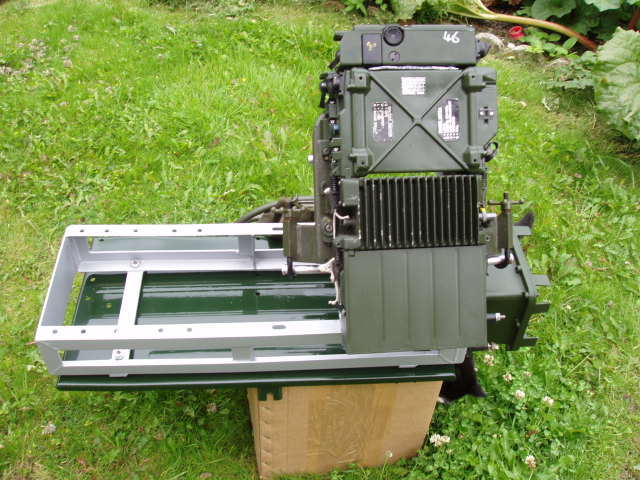

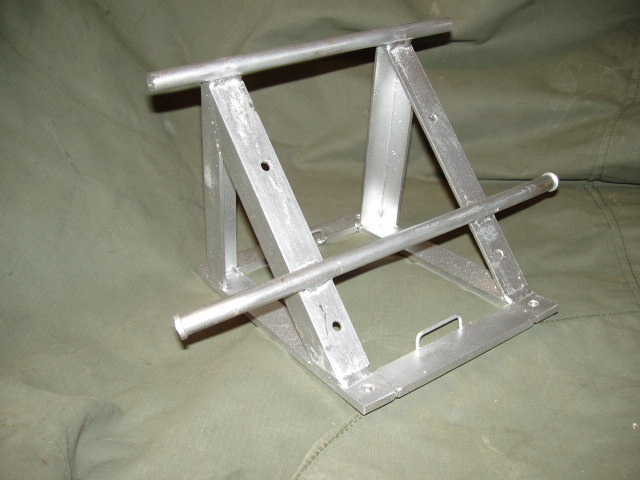

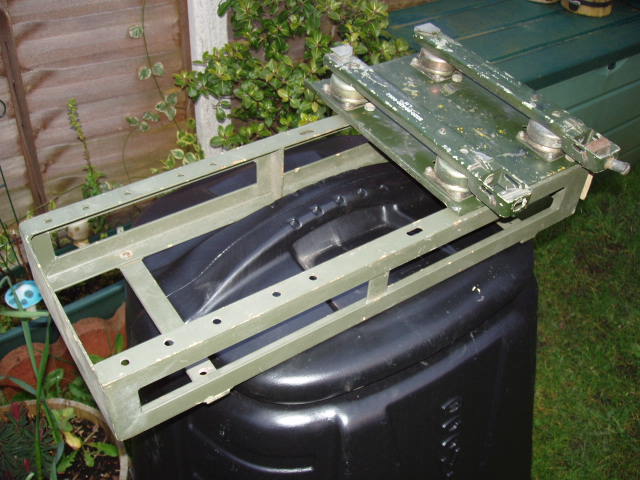

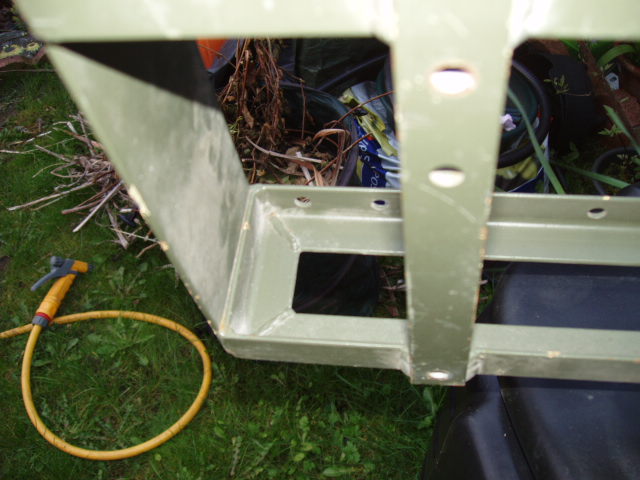

| VRC353 mount & the carrier for both the PRC351/2 & VRC353 | Radio tray | PRC 351/2 mounting frame | |
 |
 |
 |
|

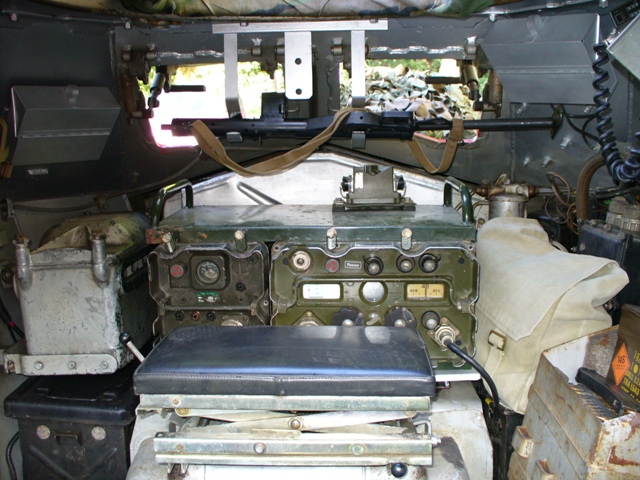

| Links below not working yet | |||
| Click here for a pdf drawing of the above | Click here for a pdf drawing of the above | Not drawn at the moment | |
| Larkspur | |||

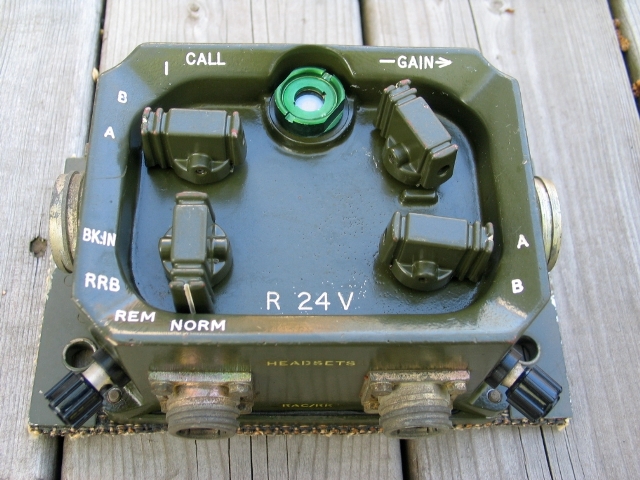

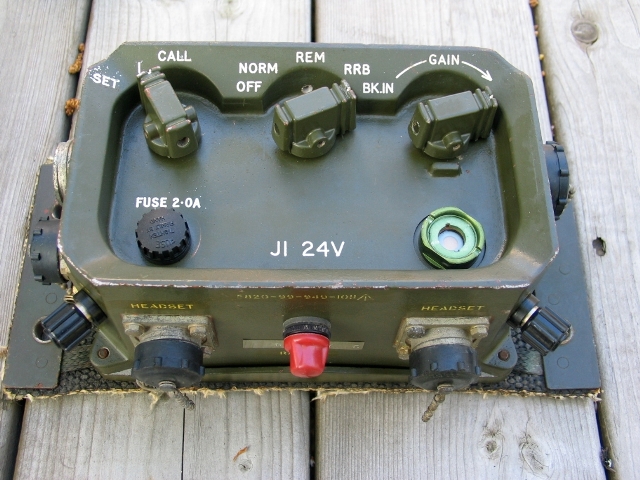

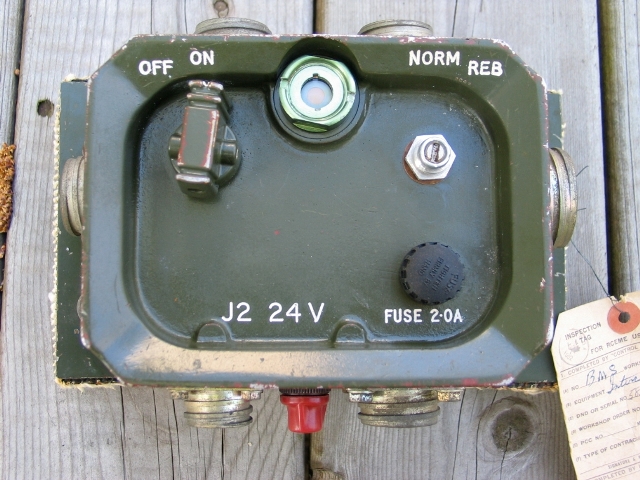

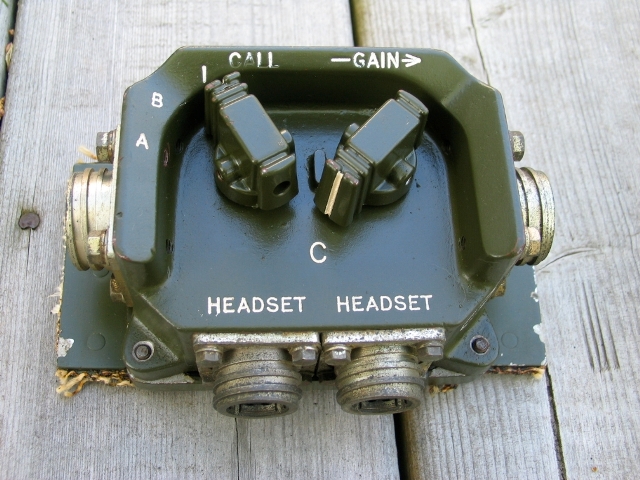

| J1 Box | J2 Box | C Box | R Box |
 |
 |
 |
 |

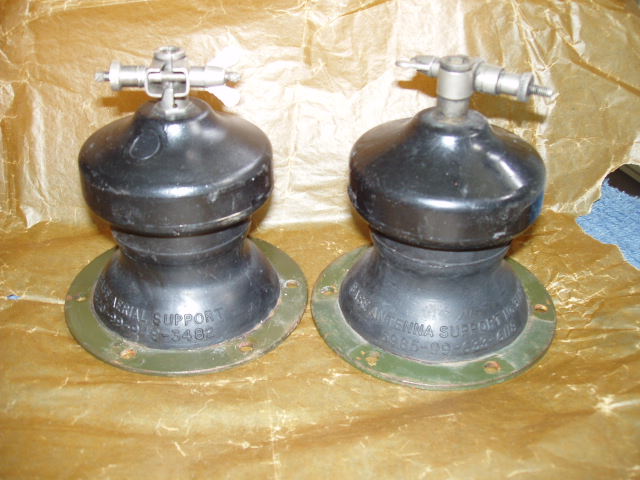

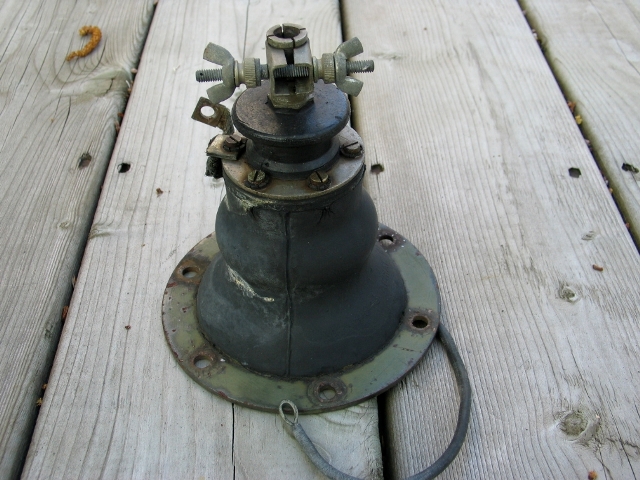

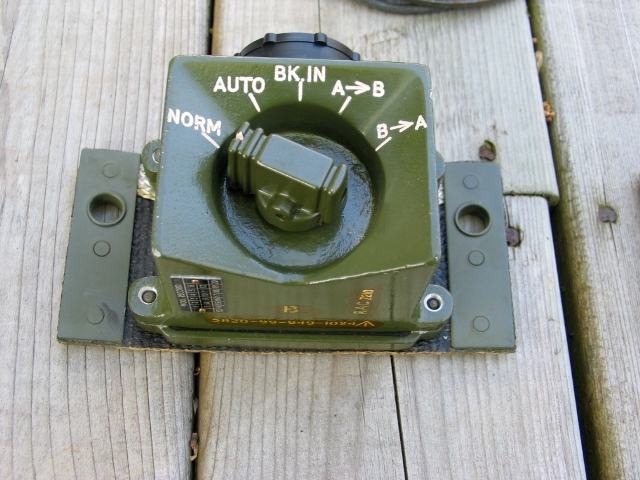

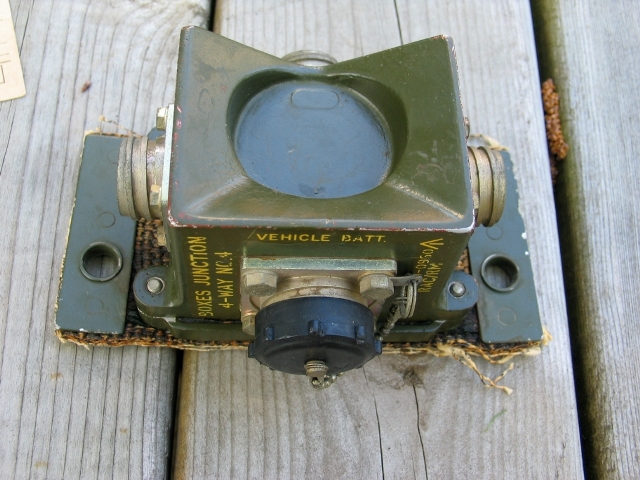

| B Box | 4 Way Box | Base Antenna Elements | Base Antenna Elements |
 |
 |
 |
 |

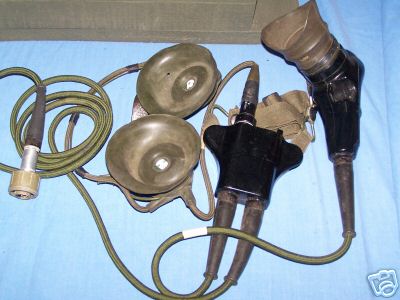

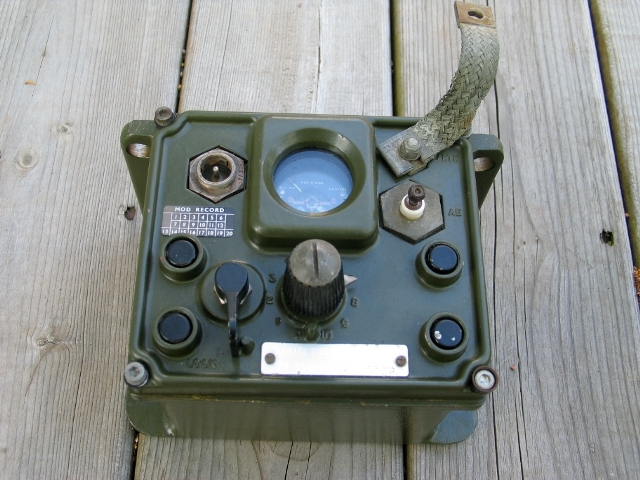

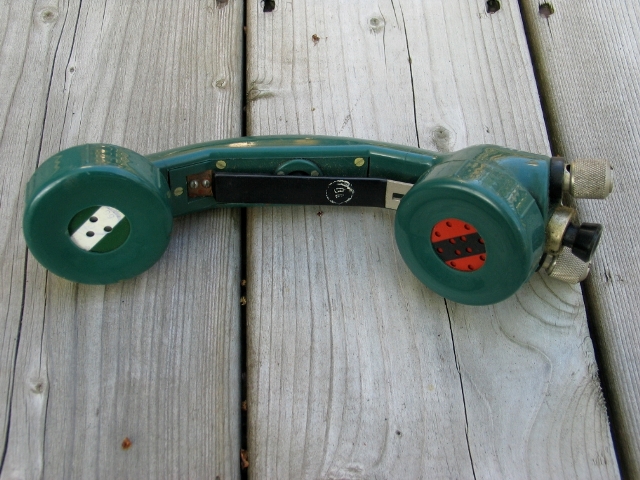

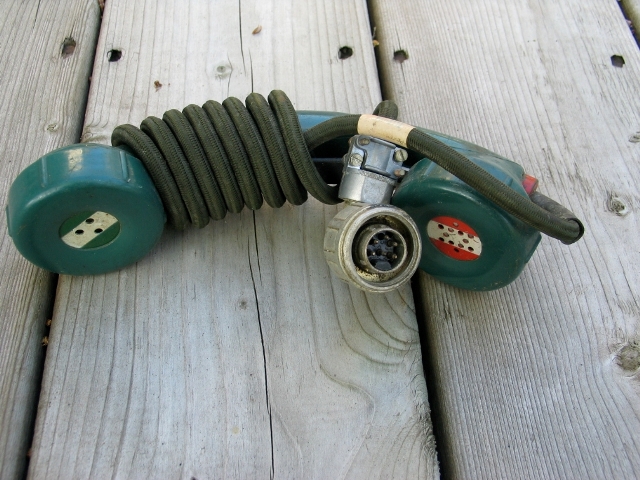

| No.6 Tuner | Handset attchs to J1 / R Box | Handset | Microphones and head set |
 |
 |
 |
 |

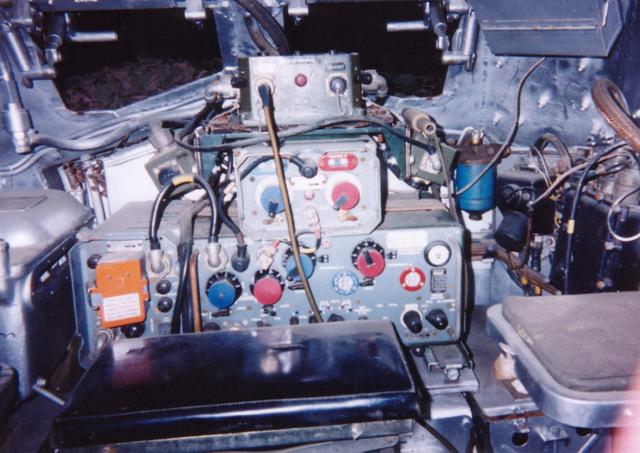

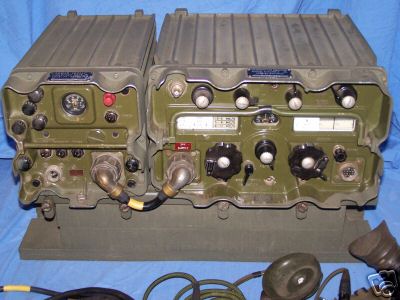

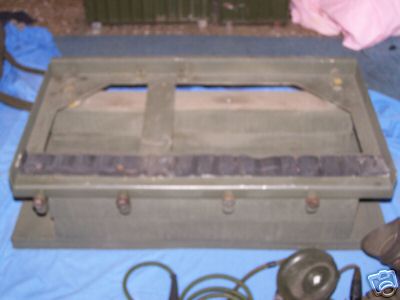

| Radio Tray | C12 Wireless station | C13 | Transmitter - Receiver C45 |
 |
 |
 |
 |
| With thanks to Brad Mills for supplying the pictures off the Larkspur Boxes and Handsets (wooden planking) | |||
| Click here for a more comprehensive look at Larkspur http://wftw.nl | |||
Pre - Larkspur

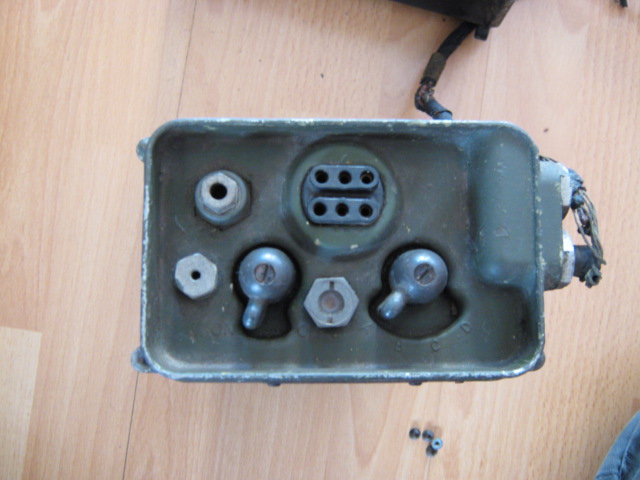

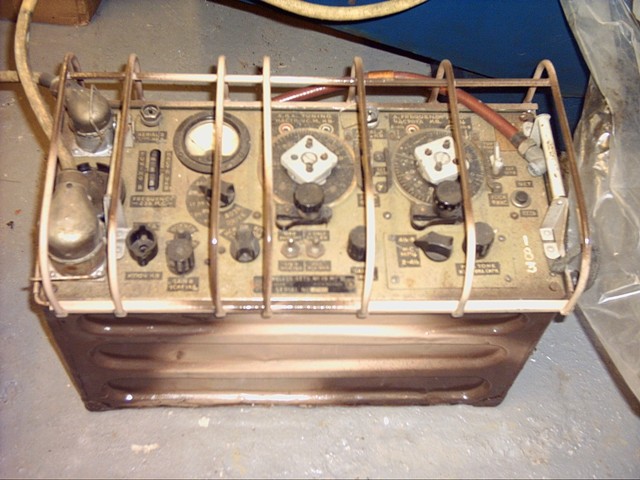

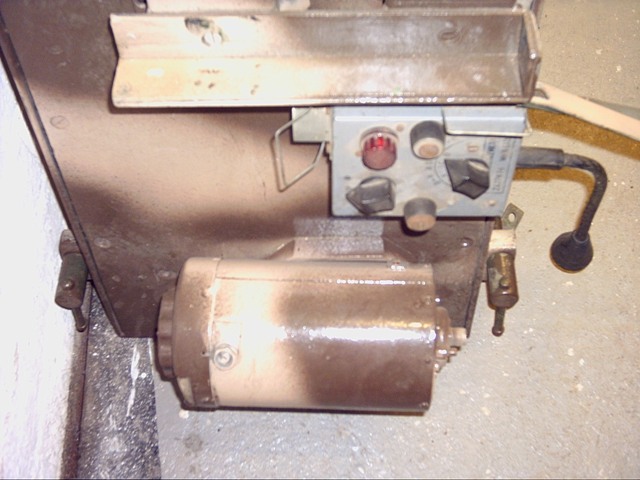

| Wireless Set Number 19 and Wireless Set Number 88 AFV | |||
 |
 |
 |
 |

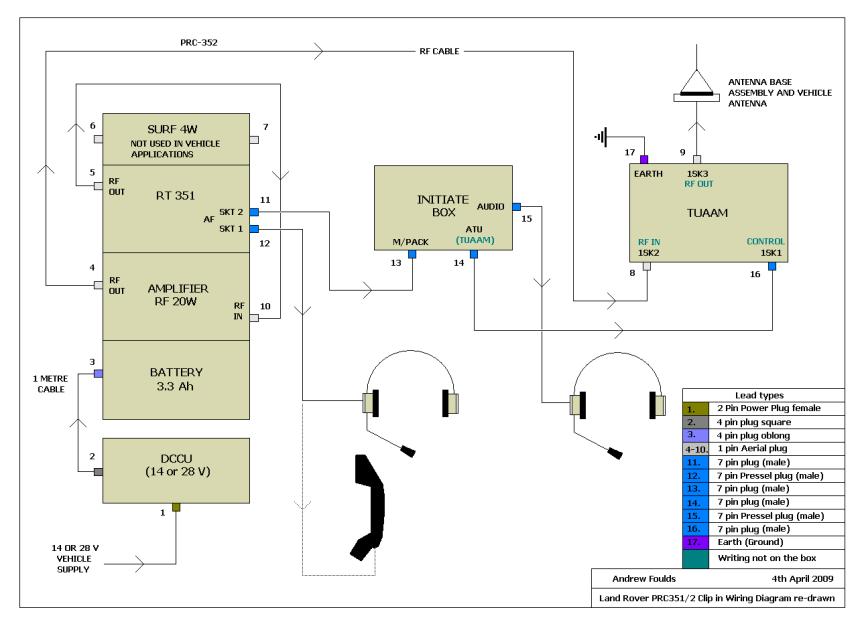

Land Rover PRC351/2 Clip in wiring diagram

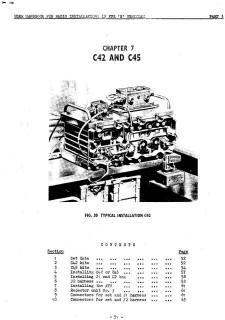

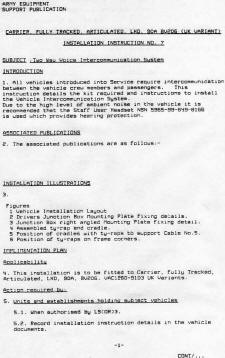

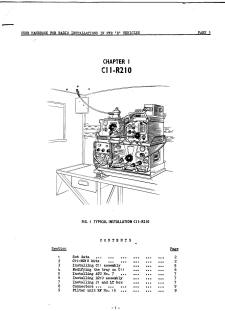

| Racal Mast Type 714 User Handbook | BV206 Intercom installation | Larkspur C11- R210 Installation | Larkspur C42 - C45 Installation |
 |
 |
 |
 |
